HP Z3100 and Z3200 ERROR CODES

Repairing Z3200 Printers - Notes on Tools, Materials, and Procedures
Mark Lindquist 12/10/2014 - updated --1-03-2017



HP DesignJet Z3100 / Z3200 Error Codes


* See this note about error messages after repairing your printer

  HP DJ Z3200 system error 01:10 A problem with the Electronics module has occurred.
  HP Z3200 System error 01:11 The electronics module has detected a connection problem with the cooling fan.
  HP Z3200 System error 01:12 The EEROM is not configured correctly.
  HP DJ Z3200 System error 01:13 A problem with the Electronics module has occurred.
  System error 02:10 A problem has occurred with the carriage assembly
  System error 02:13 A problem has occurred with the carriage assembly
  System error 03:10 A problem has occurred with the printers power supply.
  System error 04:11 Jet direct network card not detected.
  System error 05:09 Formatter installed instead of HP-GL/2 accessory card
  System error 05:10 (only) Formatter card failure, or Formatter card not detected
  System error 05:10 HP-GL/2 accessory card failure
  System error 06:03 Hard disk error
  System error 08:11 The front panel cannot be detected.
  System error 11:11 The trailing cable is poorly connected
  System error 11:13 Problem with setting the voltage of the printheads
  System error 12:11 A short has been detected in the carriage assembly
  System Error 17:11(DJ Z3200 only) A problem has been detected while initializing.
  System error 21:10 A problem has been detected with the Service Station assembly.
  System error 21:11 A problem has been detected with the Service Station assembly.
  System error 22:10 A problem has been detected with the Ink Supply Station.
  System error 41:10 A problem has been detected with the Paper-Axis motor
  System error 41:13 An error in the paper-axis motor encoder quadrature has occurred.
  System error 44:10 A problem has occurred with the Scan-Axis motor.
  System error 43:10 A problem has occurred with the Vacuum fan.
  System error 43:11 The Vacuum fan is not detected.
  System error 55:11 A problem with the line sensor has occurred
  System error 56:10 Drive roller encoder sensor error.
  System error 56:13 An error in the drive roller encoder sensor quadrature has occurred.
  System error 61:04 Firmware error.
  System error 61:05 The printer was not able to process a job that was sent.
  System error 62:03 Parallel port communication problem
  System error 63:03 LAN card communication problem
  System error 64:03 USB port communication problem
  System error 64:04 Firmware error (USB port).
  System error 65:03 Generic input/output port communication problem.
  System error 71:04 Problem allocating memory.
  System error 71:06 Out of memory problem.
  System error 72:04 Problem in the scan-axis (firmware error).
  System error 73:04 Server error.
  System error 79:04 Miscellaneous firmware error.
  System error 81:01 Paper-axis shutdown
  System error 81:11 Paper-axis shutdown (during the paper advance test).
  System error 85:10 Paper-axis shutdown (during the paper advance test).
  System error 86:01 Carriage-Axis shutdown.
  System error 86:11 Carriage-axis shutdown (during the carriage movement test).
  System error 86:13 Carriage-Axis shutdown (firmware error).
  System error 87:13 Unable to read the carriage encoder sensor.
  System error 93:10 Ink System startup failed.





(These are my own personal notes from repairs I have made. I have made this web page for my own benefit, so I have a record of what I have done. If you use this information, do so at your own risk - I assume no responsibility for errors.)

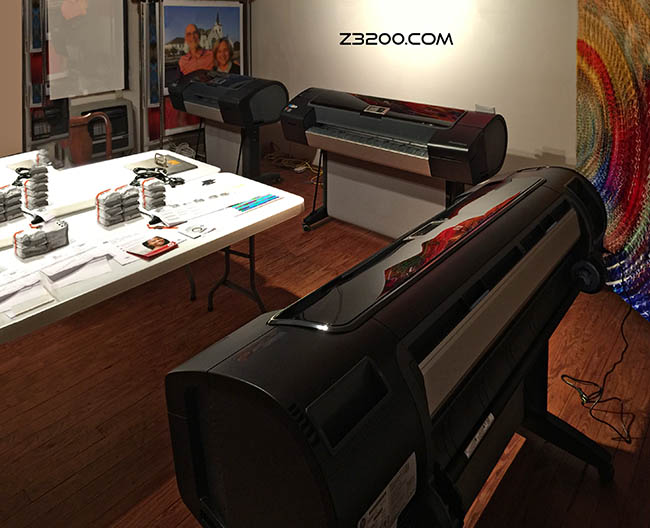

Above: The Lindquist print studio with 3 HP Z Series printers, 3200 and 3200ps.
